Mass finishing machines

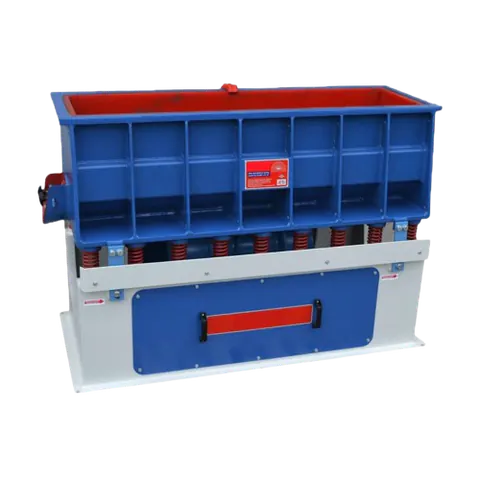

Vibratory Tubs – Tub Vibratory Finishing Machines

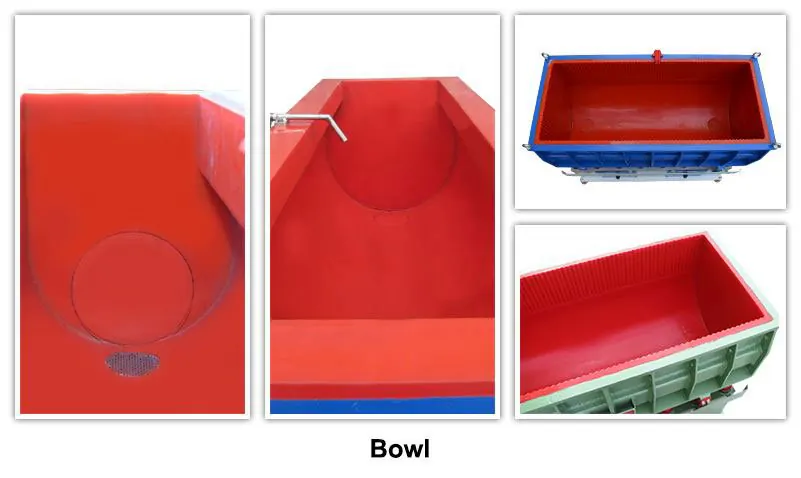

AT-TV-A and AT-TV-B series tub vibrator finishing machines with polyurethane-lined tubs, from 40 to 800 litres.

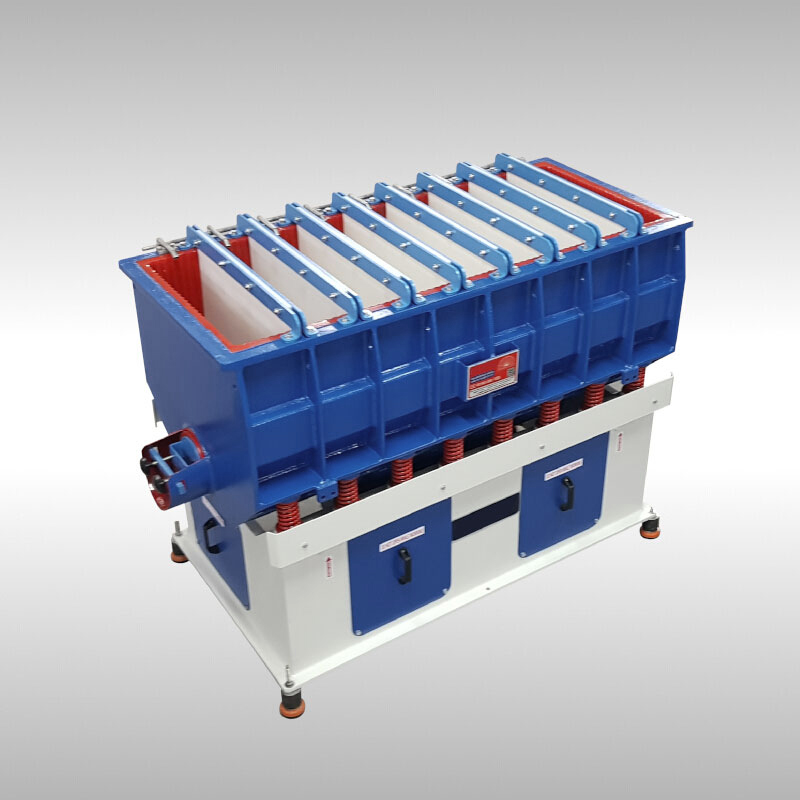

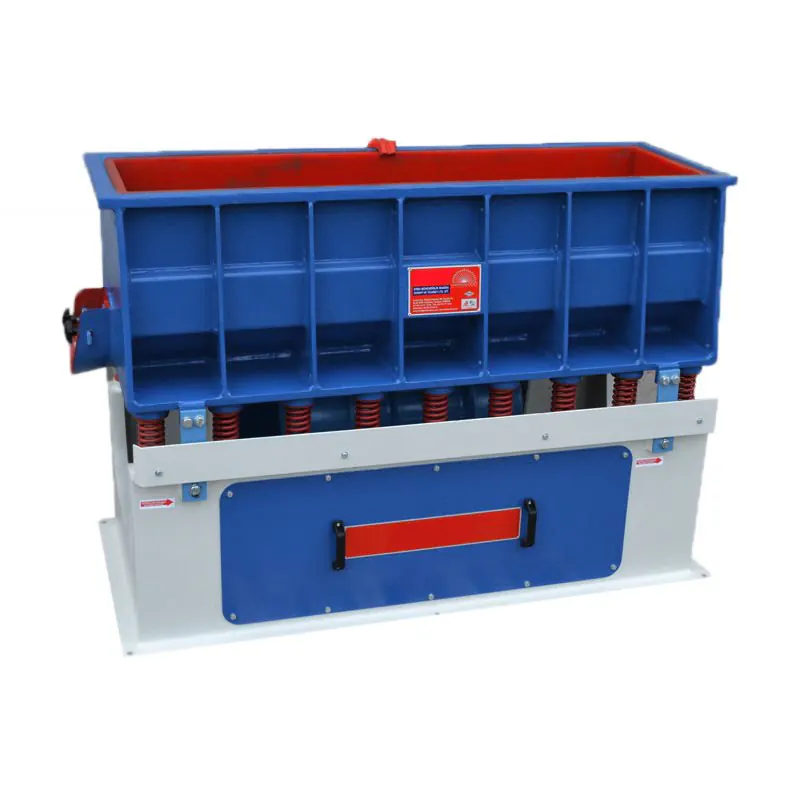

AT-TV-A
Tub Vibrator Finishing Machine – AT-TV-A Series

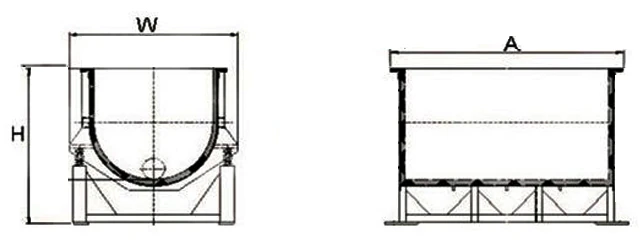

| Model | Capacity (Liters) | Motor (kW) (No. of motor × Power) | Polyurethane Lining (mm) | Length “A” (mm) | Width “W” (mm) | Total Height “H” (mm) |
|---|---|---|---|---|---|---|
| TV-A-40 | 40 | 1 X 0.75 | 10-12 | 650 | 360 | 650 |
| TV-A-120 | 120 | 1 X 1.50 | 10-12 | 950 | 480 | 700 |
Swipe sideways to see all columns.

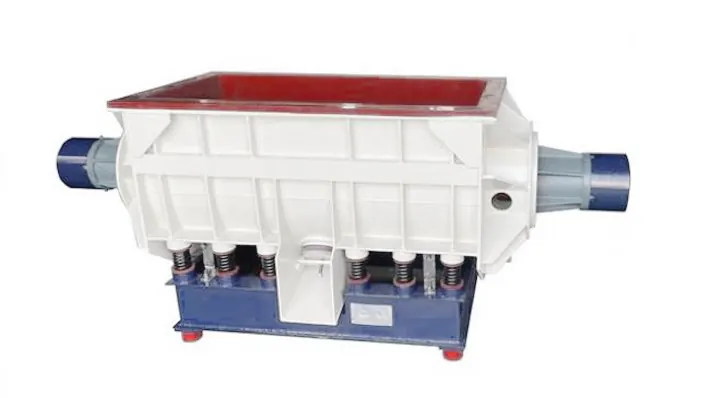

AT-TV-B

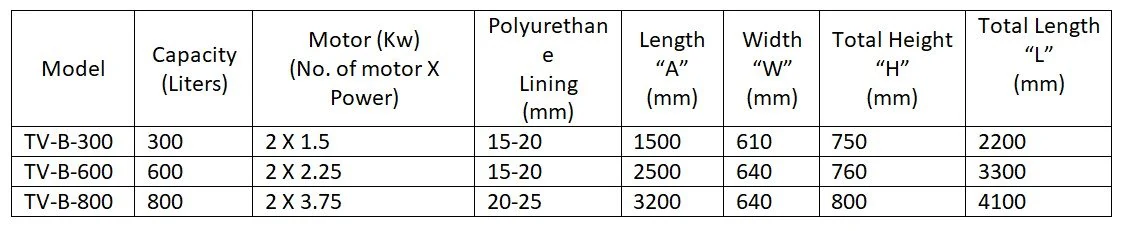

Tub Vibrator Finishing Machine – AT-TV-B Series

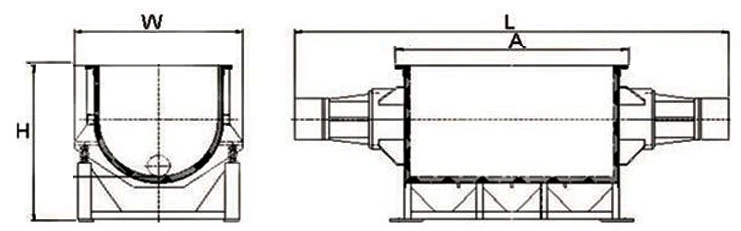

| Model | Capacity (Liters) | Motor (kW) (No. of motor × Power) | Polyurethane Lining (mm) | Length “A” (mm) | Width “W” (mm) | Total Height “H” (mm) | Total Length “L” (mm) |
|---|---|---|---|---|---|---|---|
| TV-B-300 | 300 | 2 X 1.5 | 15-20 | 1500 | 610 | 750 | 2200 |
| TV-B-600 | 600 | 2 X 2.25 | 15-20 | 2500 | 640 | 760 | 3300 |
| TV-B-800 | 800 | 2 X 3.75 | 20-25 | 3200 | 640 | 800 | 4100 |
Swipe sideways to see all columns.

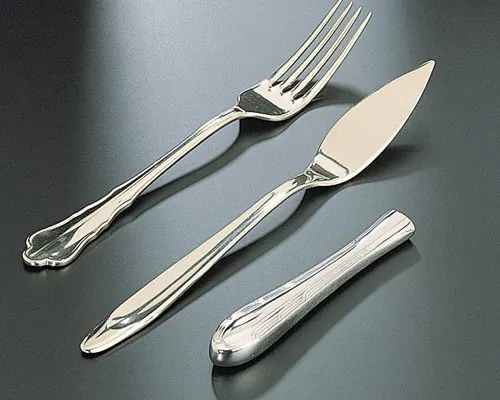

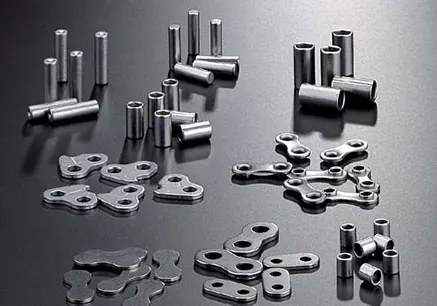

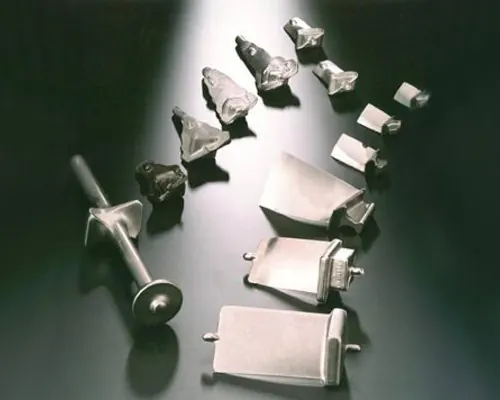

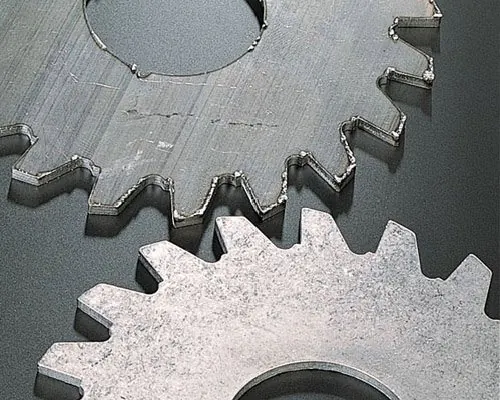

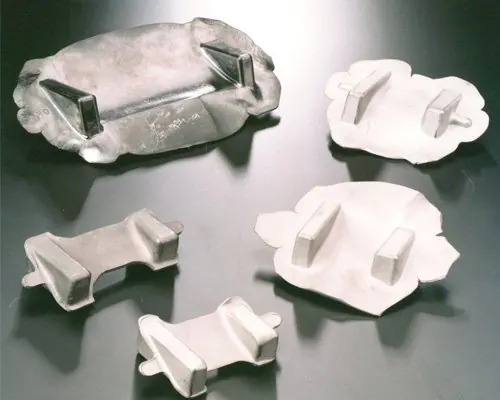

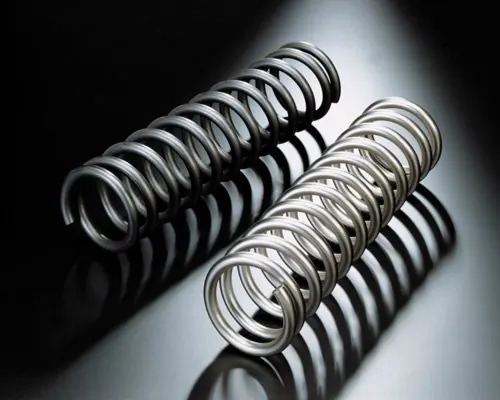

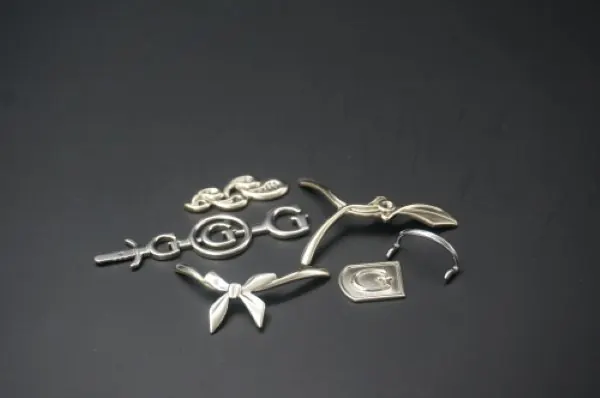

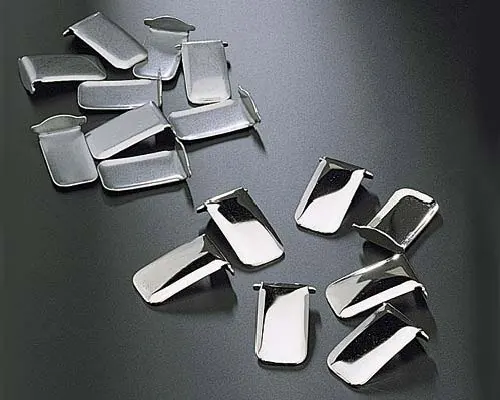

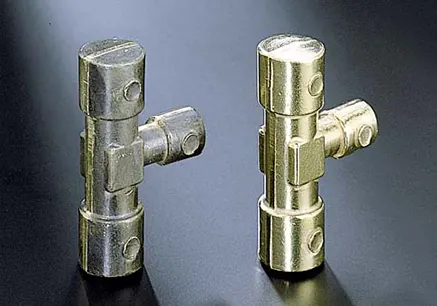

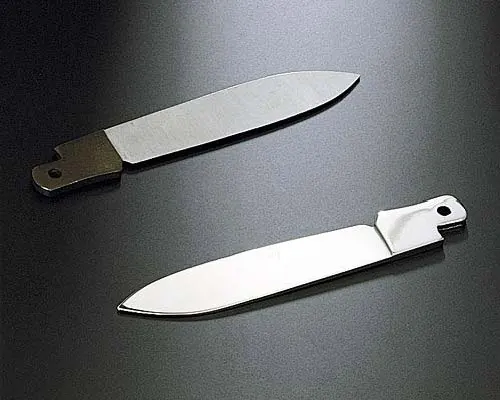

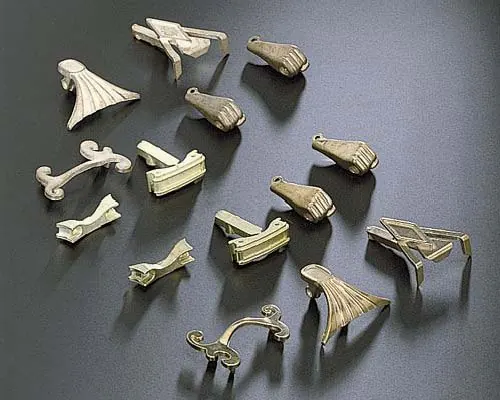

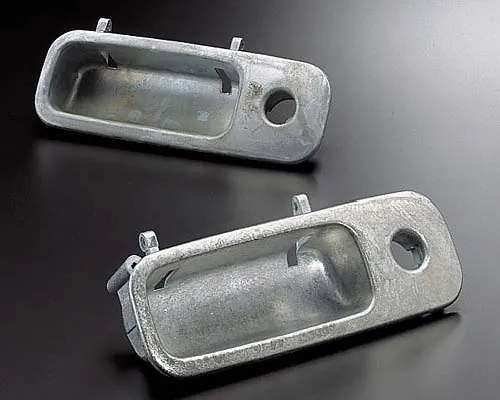

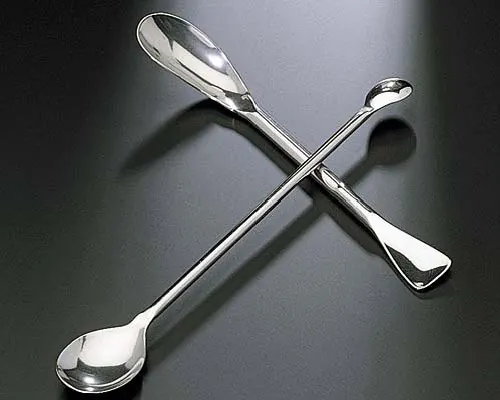

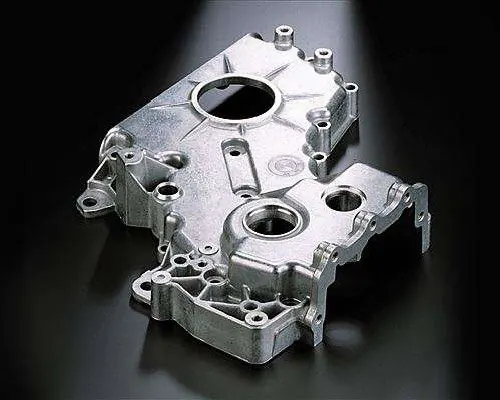

Finished parts
Application of mass finishing machines
